Tube Substitutions for:
6U8
Hf Triode - Pentode
| Type | Substitutes | Base Diagram |
|---|---|---|
| 6U8 | 6EA8, 6LN8, 6CQ8ยง, 6KD8*, 6MQ8*, 6U8A, 1252, 6678, 7731 |  |
| Notes: | * - Parallel filaments | |
| Web References | 6U8 (Mazda-Belvu) @ Franks Electron Tubes 6U8 (Tung-Sol) @ Franks Electron Tubes 6U8 (Mullard) @ Franks Electron Tubes 6U8 @ RadioMuseum.org | |
Hf Triode - Pentode
MECHANICAL DATA

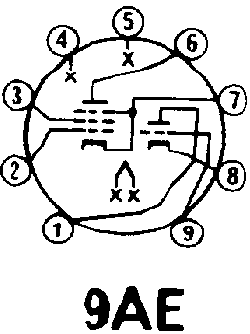

| Basing | 9AE |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 6.3 | Volts |
| Heater Current | 0.45 | A |
