Tube Substitutions for:
6LN8
Triode-Pentode

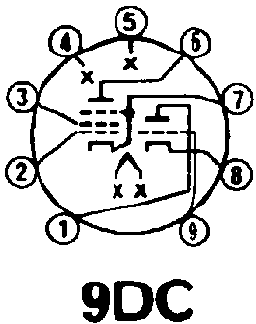

| Type | Substitutes | Base Diagram |
|---|---|---|
| 6LN8 | 6BL8, 6KE8, 6BL8*† |  |
| Notes: | * - Parallel filaments † - Series circuit no controlled warm-up | |
| Web References | 6LN8 (RCA (RC30)) @ Franks Electron Tubes 6LN8 (RMA/EIA) @ Franks Electron Tubes 6LN8 @ RadioMuseum.org | |
Triode-Pentode
MECHANICAL DATA
| Basing | 9DC |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 6.3 | Volts |
| Heater Current | A |
