Tube Substitutions for:
6DT5
Beam Power Pentode
| Type | Substitutes | Base Diagram |
|---|---|---|
| 6DT5 | 6CM6, 6CZ5, 6EM5* |  |
| Notes: | * - Parallel filaments | |
| Web References | 6DT5 (RCA (HB3)) @ Franks Electron Tubes 6DT5 (Sylvania) @ Franks Electron Tubes 6DT5 (Tung-Sol) @ Franks Electron Tubes 6DT5 (RCA (RC30)) @ Franks Electron Tubes 6DT5 @ RadioMuseum.org | |
Beam Power Pentode
MECHANICAL DATA

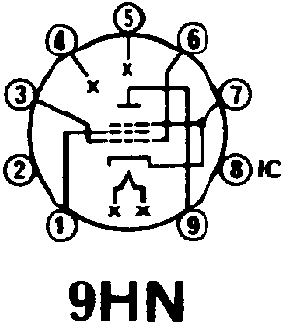

| Basing | 9HN |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 6.3 | Volts |
| Heater Current | 0.76 | A |
