Tube Substitutions for:
6EX6
Beam Power Amplifier
| Type | Substitutes | Base Diagram |
|---|---|---|
| 6EX6 | 6CD6, 6CD6GA |  |
| Web References | 6EX6 (Sylvania) @ Franks Electron Tubes 6EX6 (Tung-Sol) @ Franks Electron Tubes 6EX6 @ RadioMuseum.org | |
Beam Power Amplifier
MECHANICAL DATA

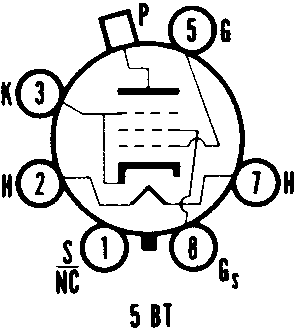

| Basing | 5BT |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 6.3 | Volts |
| Heater Current | 2.25 | A |
