GE Model 212 AM/FM Table radio

4/22/2011 8:24:01 PMJoe

Working on the above. Trying to fix a previous hack job. Schematic does not list the original values of the electrolytics. The replacements that were installed are not marked.
Anyone have any ideas? Thanks

4/22/2011 8:50:24 PMDennis Wess

Riders Vol. 18 - G.E. page 25 has the component values in a parts list.

The Nostalgia Air resources has that page:
http://www.nostalgiaair.org/PagesByModel/620/M0007620.pdf

4/22/2011 9:24:13 PMDennis Wess

Joe,

Upon closer inspection of the Riders pages I can see what you mean. I can find no specs for the 4 stage dry electrolytic C37. AT least not on the Riders pages.

Sams Photofacts also covers that model in Set 51 Folder 8.

4/22/2011 9:41:29 PMNorm Leal

Hi Joe

Use 25 mf @ 25 volts for C37A. Use 47 mf @ 160 volts for C37B, C and D. These values will work even if not exactly the same.

Norm

:Joe,
:
:Upon closer inspection of the Riders pages I can see what you mean. I can find no specs for the 4 stage dry electrolytic C37. AT least not on the Riders pages.
:
:Sams Photofacts also covers that model in Set 51 Folder 8.
:

4/22/2011 9:43:32 PMNorm Leal

This is the one I viewed:

http://www.nostalgiaair.org/PagesByModel/620/M0007620.pdf

Norm

:Hi Joe
:
: Use 25 mf @ 25 volts for C37A. Use 47 mf @ 160 volts for C37B, C and D. These values will work even if not exactly the same.
:
:Norm
:
::Joe,
::
::Upon closer inspection of the Riders pages I can see what you mean. I can find no specs for the 4 stage dry electrolytic C37. AT least not on the Riders pages.
::
::Sams Photofacts also covers that model in Set 51 Folder 8.
::
:
:

4/22/2011 9:38:56 PMDennis Wess

Joe....something strange going on here.

More digging shows that GE apparently had two radios labeled model 212.

One was produced in 1947/48. It is covered in Riders Vol. 18 Page GE 25.

The other was produced in 1962. It is covered by Sams Set 51 folder 8.

Don't know why they would do such a thing. Just causes confusion.

4/26/2011 9:09:16 AMClifton

Dennis,

Wouldn't Photofact #51 put the date around the year 1948?

Clifton

:Joe....something strange going on here.
:
:More digging shows that GE apparently had two radios labeled model 212.
:
:One was produced in 1947/48. It is covered in Riders Vol. 18 Page GE 25.
:
:The other was produced in 1962. It is covered by Sams Set 51 folder 8.
:
:Don't know why they would do such a thing. Just causes confusion.
:
:
:

4/26/2011 9:27:27 AMDennis Wess

Clifton,

I checked the Sams Date Index and Folder 51 was published in December of 1960.

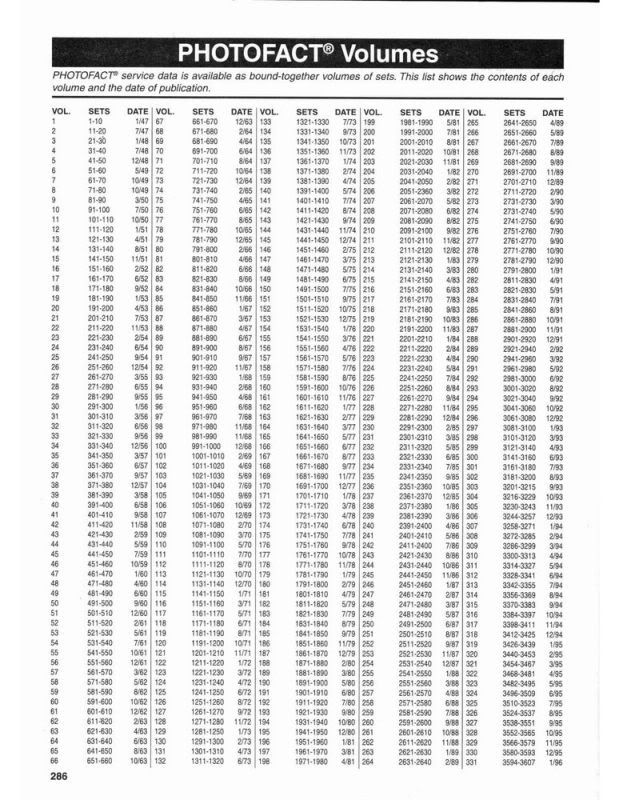

I'm posting the handy chart below as it has been very useful to me on occasion. I hope it posts large enough so that it is readable.....if not, I'll try to post a larger image.

4/26/2011 10:23:24 AMClifton

Dennis,

I think I understand now. You were referring to volume 51 and not set 51. OK, thanks.

Clifton

:Clifton,
:
:I checked the Sams Date Index and Folder 51 was published in December of 1960.
:
:I'm posting the handy chart below as it has been very useful to me on occasion. I hope it posts large enough so that it is readable.....if not, I'll try to post a larger image.
:
:
:
