Tube Substitutions for:
6E5
Electron Ray Tube

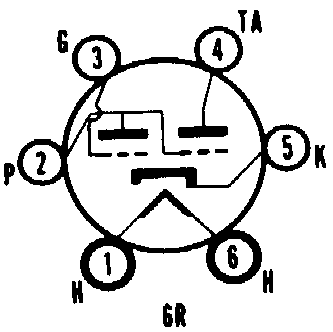

| Type | Substitutes | Base Diagram |
|---|---|---|
| 6E5 | 6U5, 6T5, 6AB5/6N5, 6G5§ |  |
| Notes: | § - May not work in all circuits | |
| Web References | 6E5 (RCA) @ Franks Electron Tubes 6E5 (RCA (HB3)) @ Franks Electron Tubes 6E5 (RFT) @ Franks Electron Tubes 6E5 (Sylvania) @ Franks Electron Tubes 6E5 (Sylvania) @ Franks Electron Tubes 6E5 (Tung-Sol) @ Franks Electron Tubes 6E5 (RCA (RC30)) @ Franks Electron Tubes 6E5 (RCA) @ Franks Electron Tubes 6E5 @ RadioMuseum.org | |
Electron Ray Tube
MECHANICAL DATA
| Basing | 6R |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 6.3 | Volts |
| Heater Current | 0.3 | A |
