Tube Substitutions for:
6C5
Medium Mu Triode
| Type | Substitutes | Base Diagram |
|---|---|---|
| 6C5 | 6J5, 6AE5, 6L5, 6P5, 6C5G, 6C5GT, 6C5GT/G, 6C5MG, 6J5G, 6J5GT, 6J5GT/G, 6J5GTX, 6J5GX, 6J5MG, 6L5G, WT390 |  |
| Web References | 6C5 (RCA) @ Franks Electron Tubes 6C5 (RCA) @ Franks Electron Tubes 6C5 (Sylvania) @ Franks Electron Tubes 6C5 (Tung-Sol) @ Franks Electron Tubes 6C5 @ RadioMuseum.org | |
Medium Mu Triode
MECHANICAL DATA

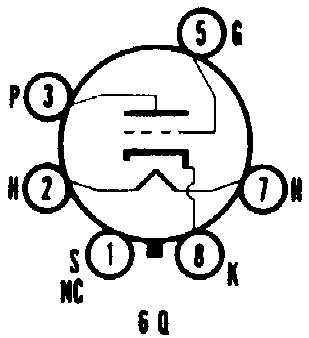

| Basing | 6Q |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 6.3 | Volts |
| Heater Current | 0.3 | A |
