Tube Substitutions for:
5AW4
Full Wave High-Vacuum Rectifier
| Type | Substitutes | Base Diagram |
|---|---|---|
| 5AW4 | 5AS4, 5AS4A, 5AU4, 5DB4, 5R4G, 5R4GTY, 5R4GY, 5R4GYA, 5R4GYB, 5U4GA, 5U4GB, 5V3, 5V3A |  |
| Web References | 5AW4 (RCA (HB3)) @ Franks Electron Tubes 5AW4 @ RadioMuseum.org | |
Full Wave High-Vacuum Rectifier
MECHANICAL DATA

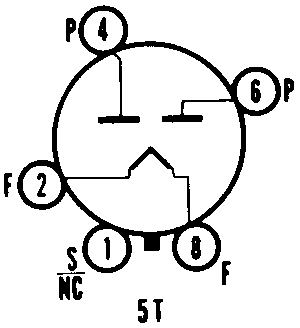

| Basing | 5T |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 5 | Volts |
| Heater Current | 4 | A |
