Tube Substitutions for:
12SA7
Pentagrid Converter
| Type | Substitutes | Base Diagram |
|---|---|---|
| 12SA7 | 12SY7, 12SA7G, 12SA7GT, 12SA7GT/G, 12SA7GTY, 12SA7Y, 12SY7GT |  |
| Web References | 12SA7 (RCA (HB3)) @ Franks Electron Tubes 12SA7 (General Electric) @ Franks Electron Tubes 12SA7 (Sylvania) @ Franks Electron Tubes 12SA7 (Tung-Sol) @ Franks Electron Tubes 12SA7 @ RadioMuseum.org | |
Pentagrid Converter
MECHANICAL DATA

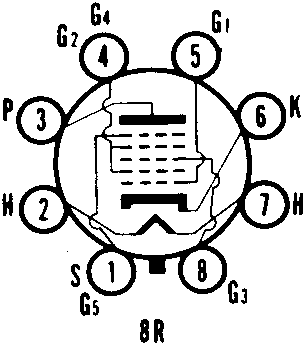

| Basing | 8R |
ELECTRICAL DATA
HEATER CHARACTERISTICS
| Heater Voltage | 12.6 | Volts |
| Heater Current | 0.15 | A |
